Pleated Pre Air Filter--Chengdu Tianrui Air Purification Equipment Co.,Ltd

PRODUCT SHOW Professional air filter manufacturers

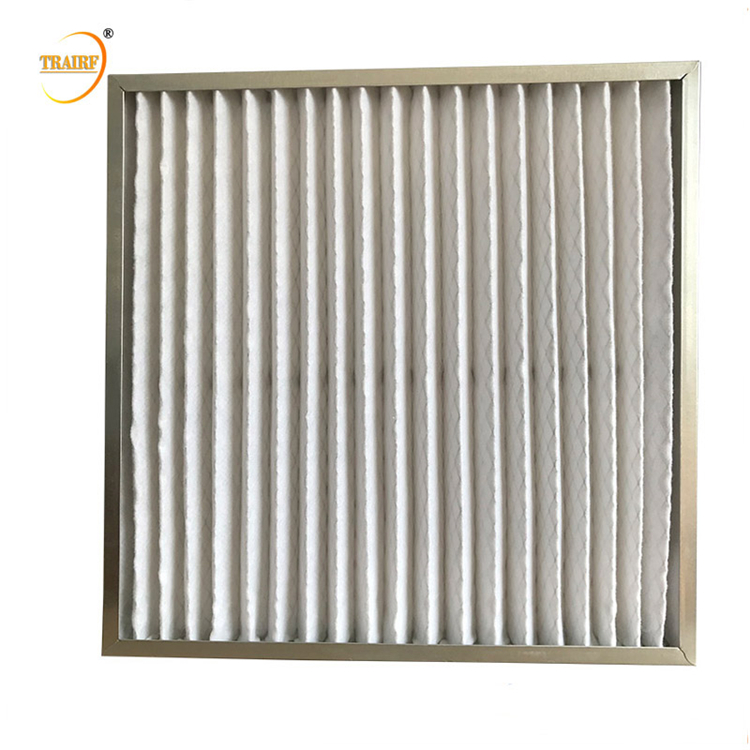

Pleated Pre Air Filter

Category：Pre Filter

HOT line： +86 028 83005623

Mobile : +86 13908212088 (Mr Li) +86 18980021527 (Ms Heng) +86 13882185117 (Ms Phoenix Jiang)
Skype: Phoenix Jiang Air Filter
Tel：028-61295169 Fax：028-61292511

Enquiry

Detailed introduction

Pleated Pre Air Filter

--Features:

◆ Filter Type: Panel type, pleated type, pocket type and box type

◆ Air Filter Frame: Cardboard, Aluminium, Galvanized and Stainlesssteel frame

◆ Filter Media: Non-woven fiber, nylon net, activated carbon fiber,metal mesh etc

◆ Low cost, light weight,Good commonality, compact structure

--Application:

Primary air filter is suitable for centralair conditioning and centralized ventilation system filtration;Filtering oflarge air compressor;Clean return air system;Pre filtration of high efficiencyfilter.

Paramter:

过滤级别	尺寸(mm) 宽x高x厚	额定风量 (m³/h)	初阻力(Pa)	终阻力(Pa)	计重效率
G3	595x595x46	3200	30	250	85%
	495x595x46	2700	30	250	85%
	295x595x46	1600	30	250	85%
	495x495x46	2200	30	250	85%
G4	595x595x46	3200	40	250	95%
	495x595x46	2700	40	250	95%
	295x595x46	1600	40	250	95%
	495x495x46	2200	40	250	95%

Note: Special size can be customized
