Metal Frame Pleated Pre Air Filter

Category：Pre Filter

HOT line： +86 028 83005623

Mobile : +86 13908212088 (Mr Li) +86 18980021527 (Ms Heng) +86 13882185117 (Ms Phoenix Jiang)
Skype: Phoenix Jiang Air Filter
Tel：028-61295169 Fax：028-61292511

Enquiry

Detailed introduction

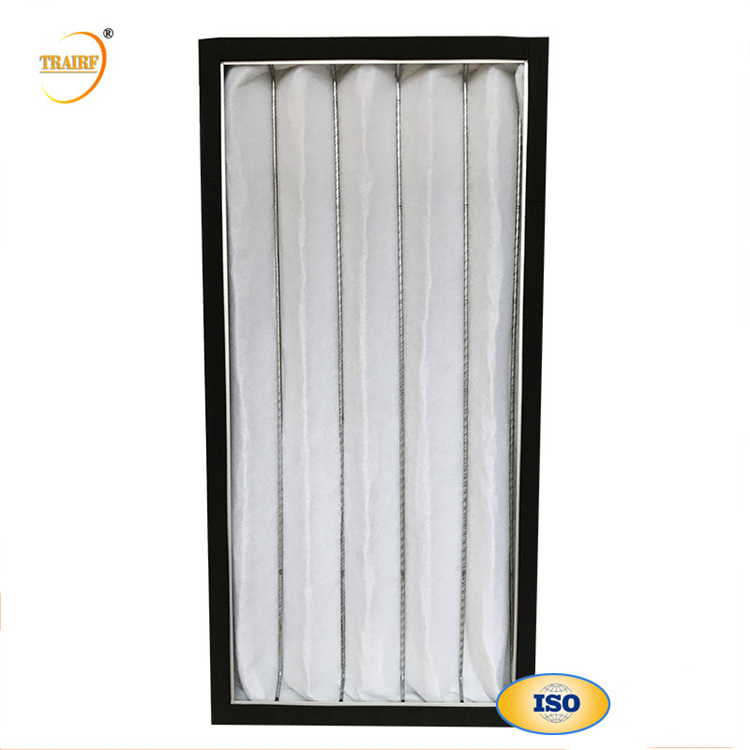

Metal Frame Pleated Pre Air Filter

Description

Metal Frame Pleated Pre Air Filter ismainly used to filter above 10 microns dust particles in air, It is suitablefor primary air filtration of central air-conditioning system and clean air conditioningsystem.

Material

Frame: Aluminium Alloy frame,rustlessgalvanized wire as support frame

Filter Media: High Quality Durable PreFilter Cotton

Filter Media Color: White, White-green

Features

◆ Can washable many times, reusable

◆ Long service life

◆ Low resistant, large filtration area and high airflow

◆ 46mm and 96mm thickness size are available

Parameter

Model	Outside Dimensions (mm)	Rated air flow (m3/h)	Initial resistance (Pa)	Efficiency(class)		Filter media
TR-CX-Z1	295×295×46mm/96mm	1000m³/h	25~40Pa	40% weight	G3 G 4	Pre Filter cotton
TR-CX-Z2	495×295×46mm/96mm	1600m³/h
TR-CX-Z3	495×495×46mm/96mm	2800m³/h
TR-CX-Z4	595×295×46mm/96mm	2000m³/h
TR-CX-Z5	595×495×46mm/96mm	3300m³/h
TR-CX-Z6	595×595×46mm/96mm	4000m³/h

Note: Special size can be customized
